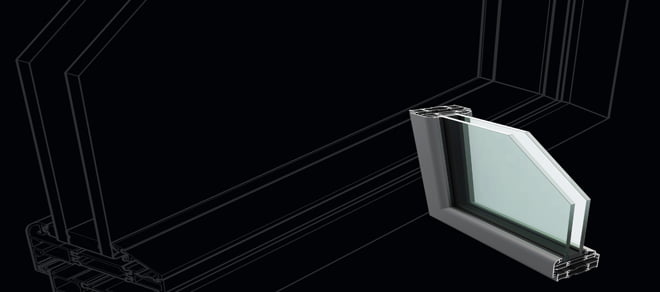

Ali VU Window
Ali VU is a super slimline aluminium window with a polyamide thermal break giving impressive thermal efficiency. Available with a host of design options, Ali VU’s strong super slim frame has a depth of just 40mm (fixed light) or 66mm with standard vent and is available in sizes up to a maximum of 1400mm x 1400mm, to give the widest views and maximise daylight in every room.
Ali VU is ideal for both domestic and large scale residential projects and is perfectly complemented by our Ali FOLD door range. The stepped face option also means that Ali VU is perfect as a modern, energy efficient replacement for heritage style steel windows in both commercial and residential buildings.
Available Configurations:
- Open Out Casement (Top or Side-hung)
High performance polyamide thermal barrier giving U-Values as low as 1.1 W/m2K when calculated as a domestic CEN Standard window
Designed to achieve triple glazed A+ Window Energy Rating; double glazed A Window Energy Rating
Able to receive double or triple glazing up to 28 – 36mm on the radius and stepped vent and up to 28-44mm on fixed outerframe and flat faced vents for maximum thermal and acoustic performance
Fully security tested to PAS24:2012 Enhanced Security
Weathertight and strong – tested to: BS6375 Part 1 Weather; BS6375 Part 2 Operation & Strength; BS6375 Part 3 Annex A

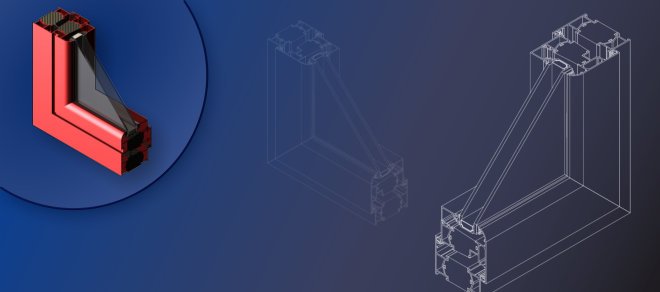

PURe Window
The PURe window range is a revolutionary new range of aluminium windows which uses an innovative, enhanced thermal barrier manufactured from expanded polyurethane (PUR) allowing ultra-low U-values to be achieved.
PURe aluminium windows are fully compatible with Senior doors and curtain walling and are available pre-finished in an almost unlimited range of colours and finishes both inside and out.
With a generic Green Guide rating of ‘A’ for use in commercial projects and a life expectancy in excess of 40 years, the PURe window range is 100% recyclable and has been designed to meet the Passivhaus standard.
Available configurations: Inward opening. Tilt and turn. :Open out casement, top or side hung
Weather Rating tested to BS 6375-1:2009 achieving 600Pa air permeability, 600Pa water tightness and 2400Pa wind resistance.
Able to receive double or triple glazing up to 50mm for maximum thermal and acoustic performance
U-Values as low as 0.71 W/m²K when calculated as a commercial CEN standard window

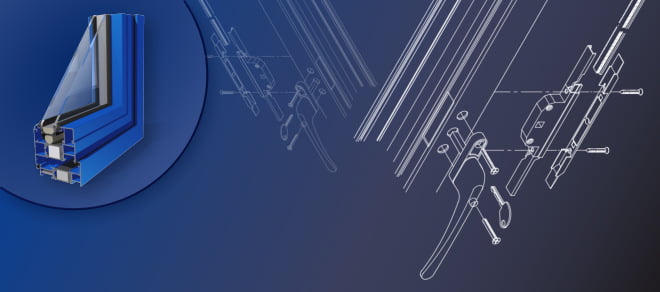

SPW600e Window
SPW600e is a three chamber, 75mm polyamide thermally enhanced aluminium window system offering versatility (wide variety of window styles) and is available in single or dual colour.
Available Configurations:
- Open Out Casement (Top or Side-hung)
- Inward Opening Tilt/Turn
- OverswingWeather Rating tested to BS 6375-1:2009 achieving 600Pa air permeability, 600Pa water tightness and 2400Pa wind resistance.
Able to receive glass and infill panels from 26 to 56mm thick depending on configuration.

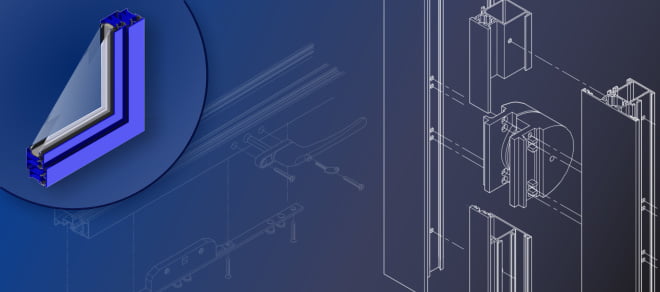

SPW300 Window
The SPW300 Window is a thermally broken polyamide aluminium window system that achieves good thermal U-values. It has a slim sightline, a wide variety of window styles and is available single or dual colour.
Available Configurations:
- Open Out Casement (Top or Side-hung)
- Inward Opening Tilt/Turn
- Overswing
- Pivot
Weather Rating tested to BS 6375-1:2009 achieving 600Pa air permeability, 600Pa water tightness and 2000 to 2400Pa wind resistance depending on configuration.
Able to receive glass and infill panels from 4 to 32mm thick depending on configuration.
