Ali FOLD
The Ali FOLD door is a stylish, high performance range of folding aluminium doors. Suitable for both commercial and domestic use, Ali FOLD doors have a polyamide thermal break to give impressive thermal efficiency and are fully compatible with all Senior windows and curtain walling.
Available in an almost unlimited range of colours and finishes both inside and out, Ali FOLD doors have narrow sight lines, are available in a choice of configurations and sizes, and are simple to fabricate using existing tooling.
Further thermal enhancement is available and with a life expectancy in excess of 40 years, the Ali FOLD door range is 100 % recyclable and will easily exceed current and meet future building regulations.

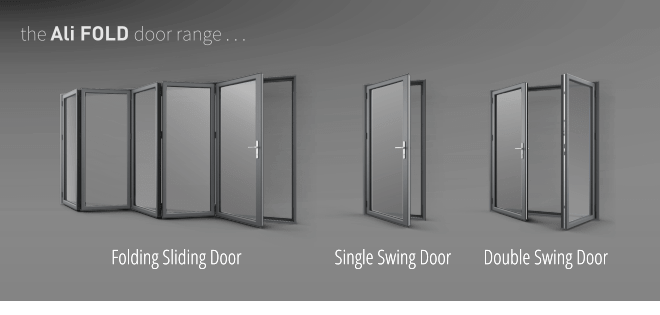

Available Configurations:
- Ali FOLD Single Swing Door (Open out or open in)
- Ali FOLD Double Swing Door (Open out or open in)
- Ali FOLD Folding Sliding Door (Open out or Open in)
- Please see manuals for full range of configurations.
Tested to PAS24:2012 Enhanced Security, BS6375 Part 1 Weather, BS6375 Part 2 Operation & Strength, BS6375 Part 3 Annex A. Exact performance varies depending on the configuration. Please contact our Technical Department for further information
Able to receive double or triple glazing up to 48mm for maximum thermal and acoustic performance
U-Values as low as 1.19 W/m2K when calculated as a CEN Standard door

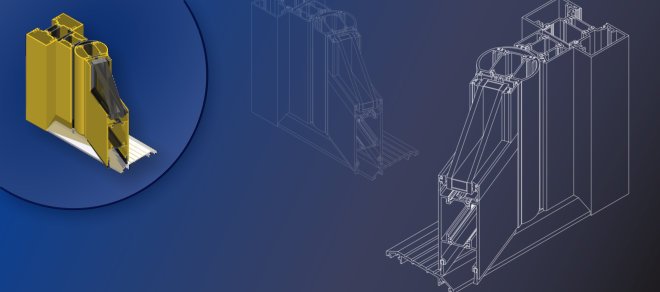

SPW501
SPW501 is a high performance, thermally broken polyamide aluminium framing system, ideal for high pedestrian uses and applications. With square cut joints for ease of fabrication the SPW501 door features a wide clip and plate flush glazed mullion section, with a narrower 58mm clip and flush mullion offered to provide additional design options. It is available in a range of configurations, including standard pivot and anti-finger trap doors.

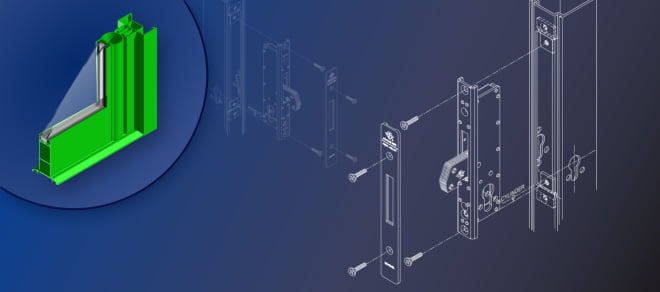

SD
The aluminium SD Door is capable of being manufactured in single, double and emergency door types. It utilises low thresholds and a variety of options such as radius anti-finger trap stiles.
Differing door configurations produce different weather ratings.
Able to receive glazing from 6mm to 24mm thick.

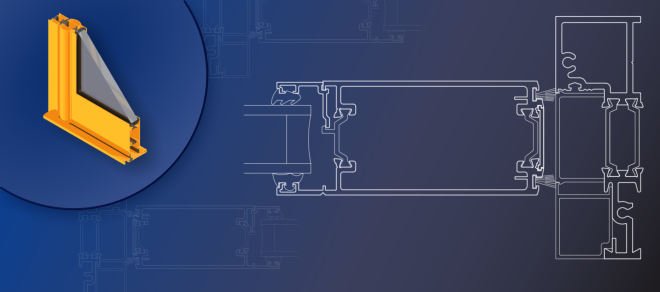

SPW500
SPW500 is a thermally broken polyamide aluminium framing system. It is designed to provide a high performance commercial door and framing solution capable of being manufactured in single, double and emergency door types. It utilises low thresholds and is available with a variety of options such as radius anti-finger trap stiles.
Available Configurations:
- Single & Double Leaf
- Single & Double Action Pivot
- Differing door configurations produce different weather ratings.
Able to receive glazing up to 28mm thick depending on weight.
